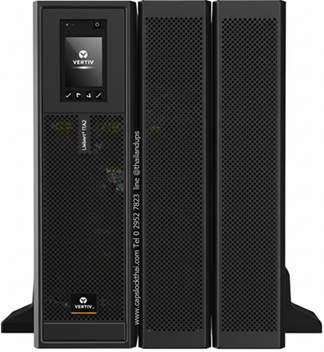

Vertiv™ Liebert®  UPS 3 PHASE - ITA2 UPS Series
Liebert ITA2 (
single phase
)

Nominal Ratings (kVA)

Nominal Power (kVA) 5
Input Parameters

Input Voltage (V)  220/230/240 VAC 1-Phase, 2 Wire
Input Voltage Range (V) 76-288 VAC at full load;
100-176 VAC at linear derating; 100 VAC at half load
Frequency (Hz) 50/60
Input Power Factor (kW/kVA) 0.99
Current THD at Full Linear Load <3
Battery

Battery Blocks Per String 12*, 15, 16, 17, 18, 19, 20
Battery Charger Max. Power (A)   5
External Battery Cabinet Option (VRLA) "P/C :
ITA-BCI0020K01 ( built-in battery module of
16 block X 12 V X 9 AH)
Battery cabinet Dimensions in rack arrangement
- 430 (W) x 750 (D) x 85 (H) "
External Battery Cabinet Option (Li-ion)
"P/C: ITA-BLI0020KL2 ( 2U lithium ion battery
module assembly - 192V / 12Ah/1 cabinet )
Battery cabinet Dimensions in rack arrangement-
430 (W) x 680 (D) x 86 (H); Weight - 35 kg / cabinet"
Output

Output Voltage (V) 220/230/240(1-Phase)
Frequency (Hz) 50/60
Rated Power Factor (kW/kVA) Unity
Voltage Harmonic Distortion (%)
<2% for Linear loads & <5% for Non-linear loads
Overload Capacity @ at 25 °C
"105~125%, 10 min; 125~150%, 1 min;
>150%, 200 ms"
Efficiency

Online Mode Efficiency Up to 95.5%
ECO Mode Efficiency Up to 99%
Dimensions and Weight

"Dimensions
(W x D x H) in mm" 430 x 480 x 85
Weight (kg) 11
General

Operating Temperature (°C) 0 ~ 50
Nosie at 1 m (dBA) <55
Relative Humidity (%RH)
5 ~ 95, non-condensing
Altitude (m) 3000 without derating
General and Safety Requirements for UPS
IEC 62040-1
EMC Requirements for UPS IEC 62040-2
"UPS Classification According to
IEC 62040-3" VFI-SS-111
"Environmental Aspects- Requirements and
Reporting" IEC 62040-4
Liebert ITA2 (
single phase
)

Nominal Ratings (kVA)

Nominal Power (kVA) 6
Input Parameters

Input Voltage (V)  220/230/240 VAC 1-Phase, 2 Wire
Input Voltage Range (V) 76-288 VAC at full load;
100-176 VAC at linear derating; 100 VAC at half load
Frequency (Hz) 50/60
Input Power Factor (kW/kVA) 0.99
Current THD at Full Linear Load <3
Battery

Battery Blocks Per String 12*, 15, 16, 17, 18, 19, 20
Battery Charger Max. Power (A)   5
External Battery Cabinet Option (VRLA) "P/C :
ITA-BCI0020K01 ( built-in battery module of
16 block X 12 V X 9 AH)
Battery cabinet Dimensions in rack arrangement
- 430 (W) x 750 (D) x 85 (H) "
External Battery Cabinet Option (Li-ion)
"P/C: ITA-BLI0020KL2 ( 2U lithium ion battery
module assembly - 192V / 12Ah/1 cabinet )
Battery cabinet Dimensions in rack arrangement-
430 (W) x 680 (D) x 86 (H); Weight - 35 kg / cabinet"
Output

Output Voltage (V) 220/230/240(1-Phase)
Frequency (Hz) 50/60
Rated Power Factor (kW/kVA) Unity
Voltage Harmonic Distortion (%)
<2% for Linear loads & <5% for Non-linear loads
Overload Capacity @ at 25 °C
"105~125%, 10 min; 125~150%, 1 min;
>150%, 200 ms"
Efficiency

Online Mode Efficiency Up to 95.5%
ECO Mode Efficiency Up to 99%
Dimensions and Weight

"Dimensions
(W x D x H) in mm" 430 x 480 x 85
Weight (kg) 11
General

Operating Temperature (°C) 0 ~ 50
Nosie at 1 m (dBA) <55
Relative Humidity (%RH)
5 ~ 95, non-condensing
Altitude (m) 3000 without derating
General and Safety Requirements for UPS
IEC 62040-1
EMC Requirements for UPS IEC 62040-2
"UPS Classification According to
IEC 62040-3" VFI-SS-111
"Environmental Aspects- Requirements and
Reporting" IEC 62040-4
Liebert ITA2 (
single phase, 3 phase 3:1
)

Nominal Ratings (kVA)

Nominal Power (kVA) 10
Input Parameters

Input Voltage (V)  220/230/240 VAC
1-Phase, 2 Wire; 380/400/415 VAC 3-Phase, 4 Wire
Input Voltage Range (V) 76-288 VAC at full load;
100-176 VAC at linear derating; 100 VAC at half load
Frequency (Hz) 50/60
Input Power Factor (kW/kVA) 0.99
Current THD at Full Linear Load <3
Battery

Battery Blocks Per String 24*, 30, 32, 34, 36, 38, 40
Battery Charger Max. Power (A)   8
External Battery Cabinet Option (VRLA) "P/C :
ITA-BCI0020K01 ( built-in battery module of
16 block X 12 V X 9 AH)
Battery cabinet Dimensions in rack arrangement
- 430 (W) x 750 (D) x 85 (H) "
External Battery Cabinet Option (Li-ion)
"P/C: ITA-BLI0020KL2 ( 2U lithium ion battery
module assembly - 192V / 12Ah/1 cabinet )
Battery cabinet Dimensions in rack arrangement-
430 (W) x 680 (D) x 86 (H); Weight - 35 kg / cabinet"
Output

Output Voltage (V) 220/230/240(1-Phase)
Frequency (Hz) 50/60
Rated Power Factor (kW/kVA) Unity
Voltage Harmonic Distortion (%)
<2% for Linear loads & <5% for Non-linear loads
Overload Capacity @ at 25 °C
"105~125%, 10 min; 125~150%, 1 min;
>150%, 200 ms"
Efficiency

Online Mode Efficiency Up to 95.5%
ECO Mode Efficiency Up to 99%
Dimensions and Weight

"Dimensions
(W x D x H) in mm" 430 x 480 x 85
Weight (kg) 15
General

Operating Temperature (°C) 0 ~ 50
Nosie at 1 m (dBA) <55
Relative Humidity (%RH)
5 ~ 95, non-condensing
Altitude (m) 3000 without derating
General and Safety Requirements for UPS
IEC 62040-1
EMC Requirements for UPS IEC 62040-2
"UPS Classification According to
IEC 62040-3" VFI-SS-111
"Environmental Aspects- Requirements and
Reporting" IEC 62040-4
Liebert ITA2
(
single phase, 3 phase 3:1, 3:3
)

Nominal Ratings (kVA)

Nominal Power (kVA) 16
Input Parameters

380/400/415 VAC 3-Phase, 4 Wire
Input Voltage Range (V) 76-288 VAC at full load;
100-176 VAC at linear derating; 100 VAC at half load
Frequency (Hz) 50/60
Input Power Factor (kW/kVA) 0.99
Current THD at Full Linear Load <3
Battery

Battery Blocks Per String 24*, 30, 32, 34, 36, 38, 40
Battery Charger Max. Power (A)   13
External Battery Cabinet Option (VRLA) "P/C :
ITA-BCI0020K01 ( built-in battery module of
16 block X 12 V X 9 AH)
Battery cabinet Dimensions in rack arrangement
- 430 (W) x 750 (D) x 85 (H) "
External Battery Cabinet Option (Li-ion)
"P/C: ITA-BLI0020KL2 ( 2U lithium ion battery
module assembly - 192V / 12Ah/1 cabinet )
Battery cabinet Dimensions in rack arrangement-
430 (W) x 680 (D) x 86 (H); Weight - 35 kg / cabinet"
Output

Output Voltage (V) 220/230/240(1-Phase)
380/400/415 VAC (3-Phase)
Frequency (Hz) 50/60
Rated Power Factor (kW/kVA) Unity
Voltage Harmonic Distortion (%)
<2% for Linear loads & <5% for Non-linear loads
Overload Capacity @ at 25 °C
"105~125%, 10 min; 125~150%, 1 min;
>150%, 200 ms"
Efficiency

Online Mode Efficiency Up to 95.5%
ECO Mode Efficiency Up to 99%
Dimensions and Weight

"Dimensions
(W x D x H) in mm" 430 x 480 x 85
Weight (kg) 23
General

Operating Temperature (°C) 0 ~ 50
Nosie at 1 m (dBA) <58
Relative Humidity (%RH)
5 ~ 95, non-condensing
Altitude (m) 3000 without derating
General and Safety Requirements for UPS
IEC 62040-1
EMC Requirements for UPS IEC 62040-2
"UPS Classification According to
IEC 62040-3" VFI-SS-111
"Environmental Aspects- Requirements and
Reporting" IEC 62040-4
Liebert ITA2
(
single phase, 3 phase 3:1, 3:3
)

Nominal Ratings (kVA)

Nominal Power (kVA) 20
Input Parameters

380/400/415 VAC 3-Phase, 4 Wire
Input Voltage Range (V) 76-288 VAC at full load;
100-176 VAC at linear derating; 100 VAC at half load
Frequency (Hz) 50/60
Input Power Factor (kW/kVA) 0.99
Current THD at Full Linear Load <3
Battery

Battery Blocks Per String 24*, 30, 32, 34, 36, 38, 40
Battery Charger Max. Power (A)   13
External Battery Cabinet Option (VRLA) "P/C :
ITA-BCI0020K01 ( built-in battery module of
16 block X 12 V X 9 AH)
Battery cabinet Dimensions in rack arrangement
- 430 (W) x 750 (D) x 85 (H) "
External Battery Cabinet Option (Li-ion)
"P/C: ITA-BLI0020KL2 ( 2U lithium ion battery
module assembly - 192V / 12Ah/1 cabinet )
Battery cabinet Dimensions in rack arrangement-
430 (W) x 680 (D) x 86 (H); Weight - 35 kg / cabinet"
Output

Output Voltage (V) 220/230/240(1-Phase)
380/400/415 VAC (3-Phase)
Frequency (Hz) 50/60
Rated Power Factor (kW/kVA) Unity
Voltage Harmonic Distortion (%)
<2% for Linear loads & <5% for Non-linear loads
Overload Capacity @ at 25 °C
"105~125%, 10 min; 125~150%, 1 min;
>150%, 200 ms"
Efficiency

Online Mode Efficiency Up to 95.5%
ECO Mode Efficiency Up to 99%
Dimensions and Weight

"Dimensions
(W x D x H) in mm" 430 x 480 x 85
Weight (kg) 23
General

Operating Temperature (°C) 0 ~ 50
Nosie at 1 m (dBA) <58
Relative Humidity (%RH)
5 ~ 95, non-condensing
Altitude (m) 3000 without derating
General and Safety Requirements for UPS
IEC 62040-1
EMC Requirements for UPS IEC 62040-2
"UPS Classification According to
IEC 62040-3" VFI-SS-111
"Environmental Aspects- Requirements and
Reporting" IEC 62040-4
Liebert ITA2
(
single phase, 3 phase 3:1, 3:3
)

Nominal Ratings (kVA)

Nominal Power (kVA) 30
Input Parameters

380/400/415 VAC 3-Phase, 4 Wire
Input Voltage Range (V) 76-288 VAC at full load;
100-176 VAC at linear derating; 100 VAC at half load
Frequency (Hz) 50/60
Input Power Factor (kW/kVA) 0.99
Current THD at Full Linear Load <3
Battery

Battery Blocks Per String 32-40
Battery Charger Max. Power (A)   13
External Battery Cabinet Option (VRLA)
Only external battery cabinet
Battery cabinet Dimensions in rack arrangement
- 430 (W) x 750 (D) x 85 (H) "
External Battery Cabinet Option (Li-ion)
"P/C: ITA-BLI0020KL2 ( 2U lithium ion battery
module assembly - 192V / 12Ah/1 cabinet )
Battery cabinet Dimensions in rack arrangement-
430 (W) x 680 (D) x 86 (H); Weight - 35 kg / cabinet"
Output

Output Voltage (V) 380/400/415 VAC (3-Phase)
Frequency (Hz) 50/60
Rated Power Factor (kW/kVA) Unity
Voltage Harmonic Distortion (%)
<2% for Linear loads & <5% for Non-linear loads
Overload Capacity @ at 25 °C
"105~125%, 10 min; 125~150%, 1 min;
>150%, 200 ms"
Efficiency

Online Mode Efficiency Up to 95.5%
ECO Mode Efficiency Up to 99%
Dimensions and Weight

"Dimensions
(W x D x H) in mm" 430 x 480 x 85
Weight (kg) 23.5
General

Operating Temperature (°C) 0 ~ 50
Nosie at 1 m (dBA) <60
Relative Humidity (%RH)
5 ~ 95, non-condensing
Altitude (m) 3000 without derating
General and Safety Requirements for UPS
IEC 62040-1
EMC Requirements for UPS IEC 62040-2
"UPS Classification According to
IEC 62040-3" VFI-SS-111
"Environmental Aspects- Requirements and
Reporting" IEC 62040-4
Liebert ITA2
(
single phase, 3 phase 3:1, 3:3
)

Nominal Ratings (kVA)

Nominal Power (kVA) 40
Input Parameters

380/400/415 VAC 3-Phase, 4 Wire
Input Voltage Range (V) 76-288 VAC at full load;
100-176 VAC at linear derating; 100 VAC at half load
Frequency (Hz) 50/60
Input Power Factor (kW/kVA) 0.99
Current THD at Full Linear Load <3
Battery

Battery Blocks Per String 24-40
Battery Charger Max. Power (A)   13
External Battery Cabinet Option (VRLA)
Only external battery cabinet
Battery cabinet Dimensions in rack arrangement
- 430 (W) x 750 (D) x 85 (H) "
External Battery Cabinet Option (Li-ion) N/A
Battery cabinet Dimensions in rack arrangement-
430 (W) x 680 (D) x 86 (H); Weight - 35 kg / cabinet"
Output

Output Voltage (V) 380/400/415 VAC (3-Phase)
Frequency (Hz) 50/60
Rated Power Factor (kW/kVA) Unity
Voltage Harmonic Distortion (%)
<2% for Linear loads & <5% for Non-linear loads
Overload Capacity @ at 25 °C
"105~125%, 10 min; 125~150%, 1 min;
>150%, 200 ms"
Efficiency

Online Mode Efficiency Up to 95.5%
ECO Mode Efficiency Up to 99%
Dimensions and Weight

"Dimensions
(W x D x H) in mm" 430 x 480 x 85
Weight (kg) 30
General

Operating Temperature (°C) 0 ~ 50
Nosie at 1 m (dBA) <63
Relative Humidity (%RH)
5 ~ 95, non-condensing
Altitude (m) 3000 without derating
General and Safety Requirements for UPS
IEC 62040-1
EMC Requirements for UPS IEC 62040-2
"UPS Classification According to
IEC 62040-3" VFI-SS-111
"Environmental Aspects- Requirements and
Reporting" IEC 62040-4
Vertiv Liebert ITA2 5 kVA 5 kWatts
Vertiv Liebert ITA2 6 kVA 6 kWatts
Vertiv Liebert ITA2 10 kVA 10 kWatts
Vertiv Liebert ITA2 16 kVA 16 kWatts
Vertiv Liebert ITA2 20kVA 20 kWatts
Vertiv Liebert ITA2 30kVA 30 kWatts
Vertiv Liebert ITA2 40 kVA 40 kWatts

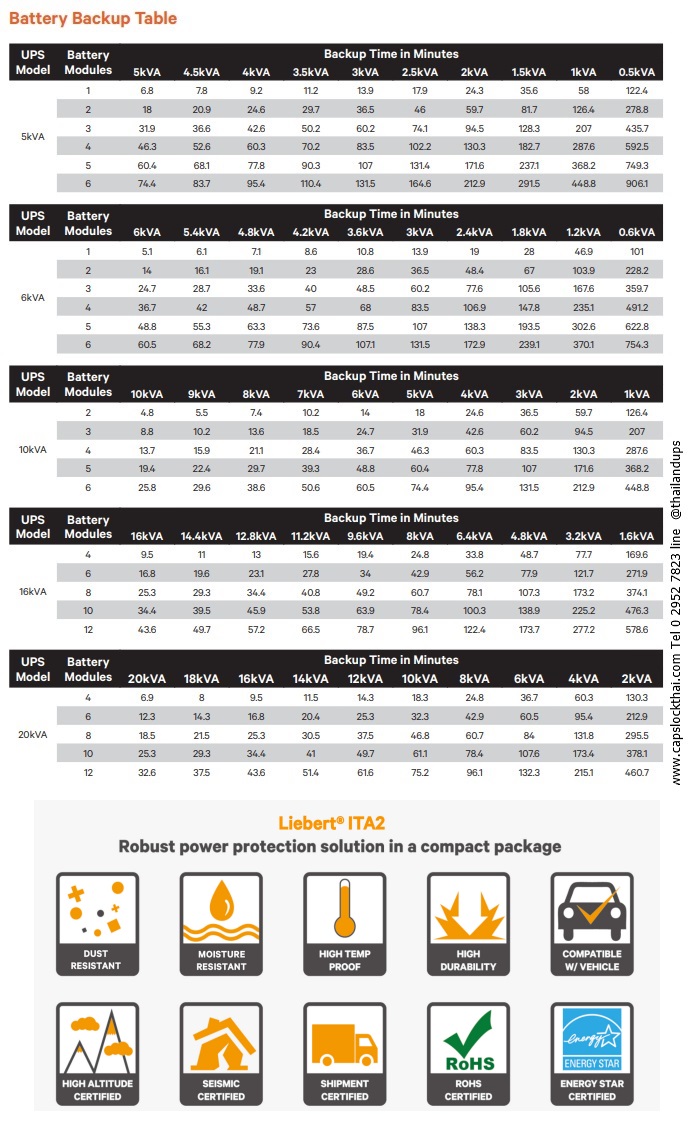

Battery backup time for Liebert ITA2 UPS
Liebert ITA2: 5KVA/5KW UPS, 230V, LCD, PF1.0, 2U
Long Backup model (No battery, Web Card (IS-UNITY-DP) Bundled, Rail Kit Bundled, Battery Cable Bundled)
P/N 01202670
( 3 yrs warranty onsite + install )
Liebert ITA2: 6KVA/6KW UPS, 230V, LCD, PF1.0, 2U
Long Backup model (No battery, Web Card (IS-UNITY-DP) Bundled, Rail Kit Bundled, Battery Cable Bundled)
P/N 01202671 ( 3 yrs warranty onsite + install )
Liebert ITA2: 10KVA/10KW UPS, 230V, LCD, PF1.0, 2U
Long Backup model (No battery, Web Card (IS-UNITY-DP) Bundled, Rail Kit Bundled, Battery Cable Bundled)
P/N 01202672 ( 3 yrs warranty onsite + install )
Liebert ITA2: 16KVA/16KW UPS, 230V, LCD, PF1.0, 3U
Long Backup model (No battery, Web Card (IS-UNITY-DP) Bundled, Rail Kit Bundled, Battery Cable Bundled)
P/N 01202682 ( 3 yrs warranty onsite + install )
Liebert ITA2: 20KVA/20KW UPS, 230V, LCD, PF1.0, 3U
Long Backup model (No battery, Web Card (IS-UNITY-DP) Bundled, Rail Kit Bundled, Battery Cable Bundled)
P/N 01202683 ( 3 yrs warranty onsite + install )
Liebert ITA2: 30KVA/30KW UPS, 230V, LCD, PF1.0, 3U
Long Backup model (No battery, Web Card (IS-UNITY-DP) Bundled, Rail Kit Bundled, Battery Cable Bundled)
P/N 01202660 ( 3 yrs warranty onsite + install )
Liebert ITA2: 40KVA/40KW UPS, 230V, LCD, PF1.0, 3U
Long Backup model (No battery, Web Card (IS-UNITY-DP) Bundled, Rail Kit Bundled, Battery Cable Bundled)
P/N 01202897 (Project only) ( 3 yrs warranty onsite + install )
เครื่องสำรองไฟ 3เฟส
ติดต่อสอบถามเพิ่มเติม
เครื่องสำรองไฟ 3เฟส
ติดต่อสอบถามเพิ่มเติม
เครื่องสำรองไฟ 3เฟส
ติดต่อสอบถามเพิ่มเติม
เครื่องสำรองไฟ 3เฟส
ติดต่อสอบถามเพิ่มเติม
เครื่องสำรองไฟ 3เฟส
ติดต่อสอบถามเพิ่มเติม
เครื่องสำรองไฟ 3เฟส
ติดต่อสอบถามเพิ่มเติม
เครื่องสำรองไฟ 3เฟส
ติดต่อสอบถามเพิ่มเติม
