Cyberpower UPS Systems (3-Phase)
คุณมา ถูกที่แล้วค่ะ
CyberPower UPS 3-Phase พลังงานสำรองที่เชื่อถือได้ สำหรับธุรกิจคุณ โซลูชันสำรองไฟฟ้าคุณภาพสูงที่ออกแบบมาเพื่อรองรับระบบไฟฟ้า 3 เฟสใน องค์กรขนาดกลางถึงขนาดใหญ่ทั้งในภาคอุตสาหกรรม ศูนย์ข้อมูล (Data Center) โรงพยาบาล โรงงาน หรือองค์กรที่ต้องการความเสถียร และความปลอดภัยทางไฟฟ้าสูงสุด

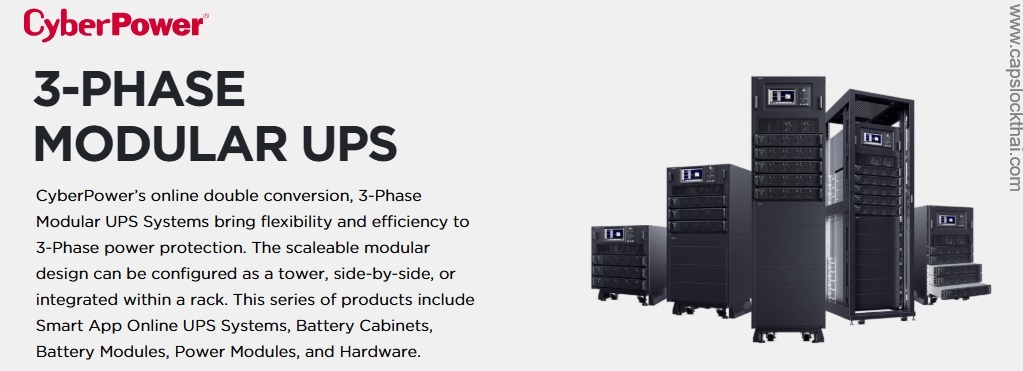

CyberPower's 3-Phase Modular UPS systems
offer flexible, efficient power protection. Their modular design is easy to install and customize, fitting into existing rack setups. The compact, high-density power modules save space and support future expansion, with options for N+N or N+1 redundancy. A 7" touch-screen LCD display provides clear, real-time system and power status.
CYBERPOWER
Online UPS : 3 phase in /1 phase out : PF : 0.9 - WARRANTY 2 YEARS
CYBERPOWER UPS
DESCRIPTION 15KVA ( W/ 40pcs*9AH BAT )
VA 15000 Watts 13500
Rated Input Current ( A ) 68.2
Rated Output Voltage ( Vac )
Line to Neutral (L-N): 208, 220, 230, 240 Vac
Outlets Hardwire Terminal Block x 1

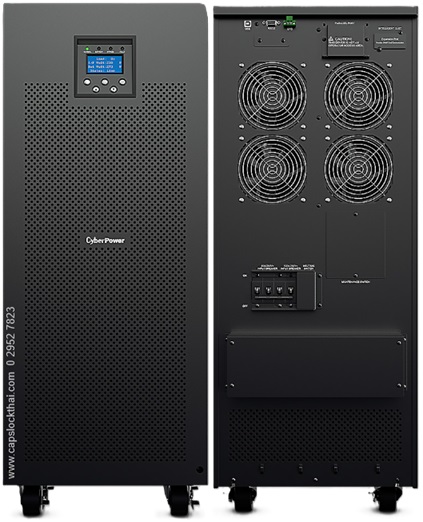

MODEL : CBP-OLS3S15KE
DESCRIPTION 15KVA ( W/ 40pcs*9AH BAT )
VA 15000 Watts 13500
Rated Input Current ( A ) 68.2
Rated Output Voltage ( Vac )
Line to Neutral (L-N): 208, 220, 230, 240 Vac
Outlets Hardwire Terminal Block x 1
CYBERPOWER UPS
DESCRIPTION 20KVA ( W/ 40pcs*9AH BAT )
VA 20000 Watts 18000
Rated Input Current ( A ) 90.9
Rated Output Voltage ( Vac )
Line to Neutral (L-N): 208, 220, 230, 240 Vac
Outlets Hardwire Terminal Block x 1
MODEL : CBP-OLS3S20KE
DESCRIPTION 20KVA ( W/ 40pcs*9AH BAT )
VA 20000 Watts 18000
Rated Input Current ( A ) 90.9
Rated Output Voltage ( Vac )
Line to Neutral (L-N): 208, 220, 230, 240 Vac
Outlets Hardwire Terminal Block x 1
CYBERPOWER UPS
DESCRIPTION 15KVA ( W/O BAT )
VA 15000 Watts 13500
Rated Input Current ( A ) 22
Rated Output Voltage ( Vac )
Line to Neutral (L-N): 208, 220, 230, 240 Vac
Outlets Hardwire Terminal Block x 1
MODEL : CBP-OLS3S15KEXL
DESCRIPTION 15KVA ( W/O BAT )
VA 15000 Watts 13500
Rated Input Current ( A ) 22
Rated Output Voltage ( Vac )
Line to Neutral (L-N): 208, 220, 230, 240 Vac
Outlets Hardwire Terminal Block x 1
CYBERPOWER UPS
DESCRIPTION 20KVA ( W/O BAT )
VA 20000 Watts 18000
Rated Input Current ( A ) 90.9
Rated Output Voltage ( Vac )
Line to Neutral (L-N): 208, 220, 230, 240 Vac
Outlets Hardwire Terminal Block x 1
MODEL : CBP-OLS3S20KEXL
DESCRIPTION 20KVA ( W/O BAT )
VA 20000 Watts 18000
Rated Input Current ( A ) 90.9
Rated Output Voltage ( Vac )
Line to Neutral (L-N): 208, 220, 230, 240 Vac
Outlets Hardwire Terminal Block x 1
CYBERPOWER UPS
DESCRIPTION Battery Pack 9AH*20pcs*2Sets
User Replaceable Batt. No
Output Voltage ( Vdc ) 240
Rated Output Current ( A ) 82
Battery Quantity ( pcs ) 40
Battery Voltage ( V ) 12

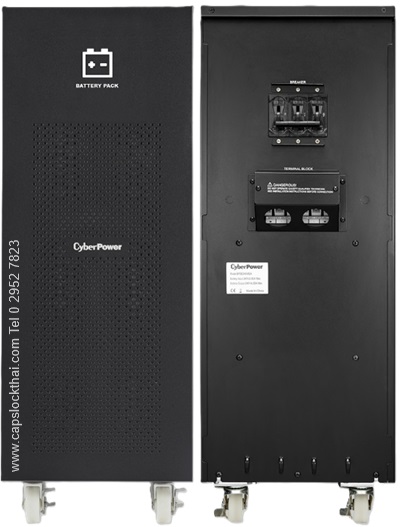

MODEL : CBP-BPSE240V82A
DESCRIPTION Battery Pack 9AH*20pcs*2Sets
User Replaceable Batt. No
Output Voltage ( Vdc ) 240
Rated Output Current ( A ) 82
Battery Quantity ( pcs ) 40
Battery Voltage ( V ) 12
Features
Three-phase Design
ECO Mode
Dual Inputs
Pure Sine Wave Output
LCD Status Display
Battery Cold Start
Smart Battery Management (SBM)
PowerPanel Management Software
Online (Double Conversion) UPS Topology
UPS Parallel Expansion
Generator Compatible
Maintenance Bypass Switch
Emergency Power Off (EPO) Port
Extended Battery Module (EBM)
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
OLS3S15KE
Parallel Port Cover Plate
Terminal Cover
Terminal Splices
USB Cable
User's Manual
Product Registration Card
OLS3S20KE
Parallel Port Cover Plate
Terminal Cover
Terminal Splices
USB Cable
User's Manual
What's in the box
OLS3S15KEXL
Parallel Port Cover Plate
Terminal Cover
Terminal Splices
USB Cable
User's Manual
Product Registration Card
OLS3S20KEXL
Parallel Port Cover Plate
Terminal Cover
Terminal Splices
USB Cable
User's Manual
Features for BPSE240V82A
Sealed Lead-acid Batteries
Metal Housing
EBM Expansion Capability
Using a CyberPower 3-phase UPS is ideal when you need higher efficiency, reliability, and scalability for large-scale or mission-critical applications.

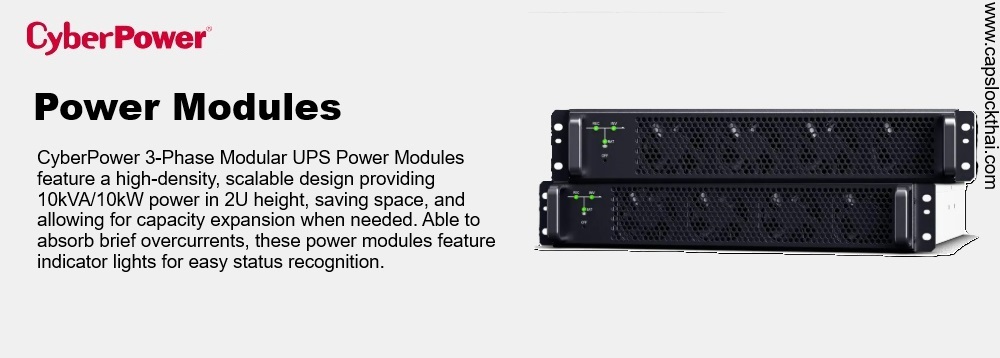

POWER MODULE
โมดูลพลังงานที่สามารถติดตั้งเพิ่มเติมในเครื่องสำรองไฟ (UPS) เพื่อเพิ่มความสามารถในการปรับขยายในแนวตั้งและเพิ่มกำลังไฟฟ้าสำหรับศูนย์ข้อมูล ผู้ใช้สามารถเลือกจำนวนโมดูลพลังงานที่จะติดตั้งได้ตามต้องการ และสามารถปรับกำลังไฟฟ้าให้เหมาะสมกับความต้องการของธุรกิจได้อย่างยืดหยุ่น
CYBERPOWER
Modular
Online UPS : 3 phase in /1 phase out : PF : 0.9 - WARRANTY 2 YEARS
CYBERPOWER UPS

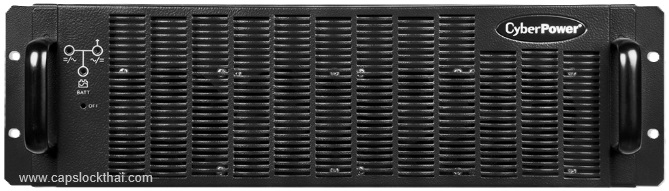

CBP-SM20KPM
DESCRIPTION 20KVA Power Modular
MODEL :
CBP-SM20KPMDESCRIPTION 20KVA Power Modular
CYBERPOWER UPS

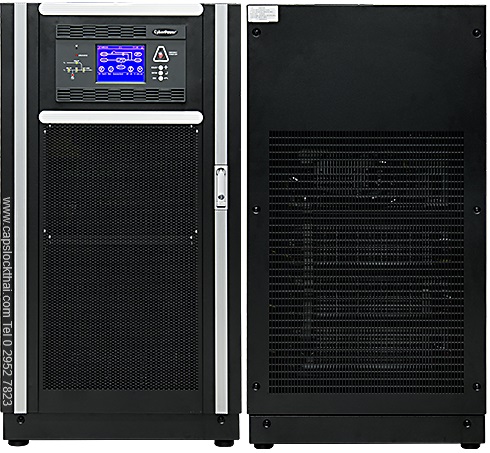

CBP-SM060KMF
DESCRIPTION 60KVA Enclosure
VA 60000 Watts 54000
Rated Input Current ( A ) 83
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
CBP-SM060KMFDESCRIPTION 60KVA Enclosure
VA 60000 Watts 54000
Rated Input Current ( A ) 83
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
CYBERPOWER UPS
CBP-SM120KMF
DESCRIPTION 120KVA Enclosure
VA 120000 Watts 108000
Rated Input Current ( A ) 165
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
CBP-SM120KMFDESCRIPTION 120KVA Enclosure
VA 120000 Watts 108000
Rated Input Current ( A ) 165
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
CYBERPOWER UPS

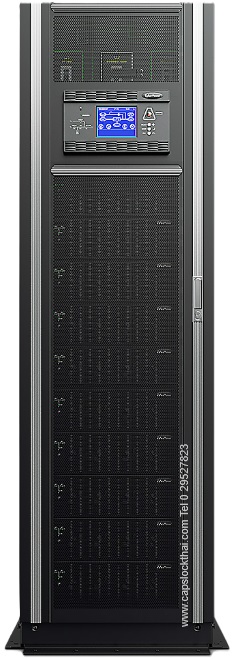

CBP-SM200KMF
DESCRIPTION 200KVA Enclosure
VA 200000 Watts 180000
Rated Input Current ( A ) 275
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
CBP-SM200KMFDESCRIPTION 200KVA Enclosure
VA 200000 Watts 180000
Rated Input Current ( A ) 275
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1

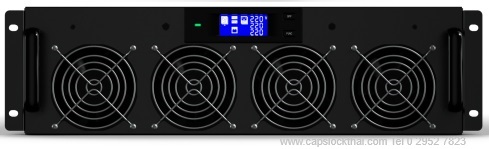

CYBERPOWER UPS
CBP-SM30KPMX
DESCRIPTION 30KVA Power Modular
VA 30000 Watts 27000
Rated Input Current ( A ) 41
Topology Online Double Conversion
MODEL :
CBP-SM30KPMXDESCRIPTION 30KVA Power Modular
VA 30000 Watts 27000
Rated Input Current ( A ) 41
Topology Online Double Conversion
20 kVA MODULAR
30 kVA MODULAR
CYBERPOWER UPS

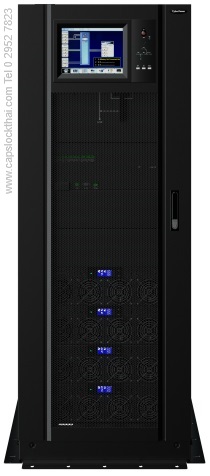

CBP-SM180KMFX
DESCRIPTION 180KVA Enclosure
VA 180000 Watts 126000
Rated Input Current ( A ) 247
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
CBP-SM180KMFXDESCRIPTION 180KVA Enclosure
VA 180000 Watts 126000
Rated Input Current ( A ) 247
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
CYBERPOWER UPS

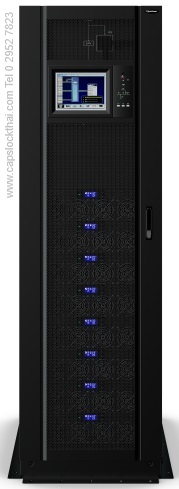

CBP-SM300KMFX
DESCRIPTION 300KVA Enclosure
VA 300000 Watts 270000
Rated Input Current ( A ) 412
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
CBP-SM300KMFXDESCRIPTION 300KVA Enclosure
VA 300000 Watts 270000
Rated Input Current ( A ) 412
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
CYBERPOWER UPS

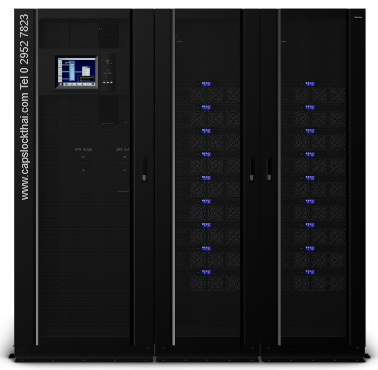

CBP-SM600KMFX
DESCRIPTION 600KVA Enclosure
VA 600000 Watts 540000
Rated Input Current ( A ) 824
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
CBP-SM600KMFXDESCRIPTION 600KVA Enclosure
VA 600000 Watts 540000
Rated Input Current ( A ) 824
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Features
Three-phase Design
Pure Sine Wave Output
Hot-swappable Power Modules
Online (Double Conversion) UPS Topology
Flexible Power Scalability
Space-saving Design
What's in the box
SM20KPM
Rackmount Ears
User's Manual
Features
Three-phase Design
ECO Mode
LCD Touch Panel
UPS Parallel Expansion
Generator Compatible
Overload Protection
Smart Battery Management (SBM)
Emergency Power Off (EPO) Port
PowerPanel Management Software
Online (Double Conversion) UPS Topology
Vertical Scalability
Active PFC Compatible
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
SM060KMFUser's Manual
Features
Three-phase Design
ECO Mode
Color LCD Panel
Active PFC Compatible
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
Online (Double Conversion) UPS Topology
Vertical Scalability
LCD Touch Panel
UPS Parallel Expansion
Generator Compatible
Overload Protection
Smart Battery Management (SBM)
Emergency Power Off (EPO) Port
PowerPanel Management Software
What's in the box
SM300KMFXUser's Manual
Features
Three-phase Design
ECO Mode
Color LCD Panel
Active PFC Compatible
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
Online (Double Conversion) UPS Topology
Vertical Scalability
LCD Touch Panel
UPS Parallel Expansion
Generator Compatible
Overload Protection
Smart Battery Management (SBM)
Emergency Power Off (EPO) Port
PowerPanel Management Software
What's in the box
SM180KMFXUser's Manual
Features
Three-phase Design
Pure Sine Wave Output
Hot-swappable Power Modules
Online (Double Conversion) UPS Topology
Flexible Power Scalability
Space-saving Design
What's in the box
SM20KPMRackmount Ears
User's Manual
Features
Three-phase Design
ECO Mode
LCD Touch Panel
UPS Parallel Expansion
Generator Compatible
Overload Protection
Smart Battery Management (SBM)
Emergency Power Off (EPO) Port
PowerPanel Management Software
Online (Double Conversion) UPS Topology
Vertical Scalability
Active PFC Compatible
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
SM060KMF
User's Manual
Features
Three-phase Design
ECO Mode
LCD Touch Panel
UPS Parallel Expansion
Generator Compatible
Overload Protection
Smart Battery Management (SBM)
Emergency Power Off (EPO) Port
PowerPanel Management Software
Online (Double Conversion) UPS Topology
Vertical Scalability
Active PFC Compatible
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
SM120KMF
User's Manual
Features
Three-phase Design
ECO Mode
LCD Touch Panel
UPS Parallel Expansion
Generator Compatible
Overload Protection
Smart Battery Management (SBM)
Emergency Power Off (EPO) Port
PowerPanel Management Software
Online (Double Conversion) UPS Topology
Vertical Scalability
Active PFC Compatible
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
SM200KMF
User's Manual
ติดต่อสอบถามเพิ่มเติม
ติดต่อสอบถามเพิ่มเติม
CYBERPOWER
CyberPower 3-Phase In / 3-Phase Out UPS System – High-Capacity Power Protection for Critical Infrastructure
The CyberPower 3-Phase In / 3-Phase Out Uninterruptible Power Supply (UPS) is engineered to deliver robust and reliable power protection for large-scale, mission-critical applications such as data centers, industrial operations, healthcare facilities, and enterprise networks.
This UPS system supports three-phase input and three-phase output, ensuring balanced power distribution and efficient performance across high-load environments. Designed with online double-conversion topology, it provides seamless and consistent power by isolating connected equipment from utility power fluctuations, surges, and outages.
Online UPS : 3 phase in /3 phase out : PF : 0.9 - WARRANTY 2 YEARS
CyberPower 3-Phase In / 3-Phase Out UPS System – High-Capacity Power Protection for Critical Infrastructure
The CyberPower 3-Phase In / 3-Phase Out Uninterruptible Power Supply (UPS) is engineered to deliver robust and reliable power protection for large-scale, mission-critical applications such as data centers, industrial operations, healthcare facilities, and enterprise networks.
This UPS system supports three-phase input and three-phase output, ensuring balanced power distribution and efficient performance across high-load environments. Designed with online double-conversion topology, it provides seamless and consistent power by isolating connected equipment from utility power fluctuations, surges, and outages.
CYBERPOWER UPS
HSTP3T10KE (3-Phase)
DESCRIPTION : 10KVA/9KW 400/230VAC 3PHASE w/o BAT
VA 10000 Watts 9000
Rated Input Current ( A ) 14
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
HSTP3T10KE (3-Phase)DESCRIPTION : 10KVA/9KW 400/230VAC 3PHASE w/o BAT
VA 10000 Watts 9000
Rated Input Current ( A ) 14
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Features
Three-phase Design
ECO Mode
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
Emergency Power Off (EPO) Port
PowerPanel Management Software
Online (Double Conversion) UPS Topology
UPS Parallel Expansion
Generator Compatible
Overload Protection
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
HSTP3T10KEUser's Manual

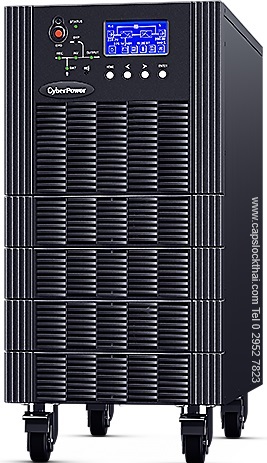

CYBERPOWER UPS
HSTP3T15KE (3-Phase)
DESCRIPTION : 15KVA/13.5KW 400/230VAC 3PHASE w/o BAT
VA 15000 Watts 13500
Rated Input Current ( A ) 21
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
HSTP3T15KE (3-Phase)DESCRIPTION : 15KVA/13.5KW 400/230VAC 3PHASE w/o BAT
VA 15000 Watts 13500
Rated Input Current ( A ) 21
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Features
Three-phase Design
ECO Mode
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
Emergency Power Off (EPO) Port
PowerPanel Management Software
Online (Double Conversion) UPS Topology
UPS Parallel Expansion
Generator Compatible
Overload Protection
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
HSTP3T15KEUser's Manual
CYBERPOWER UPS

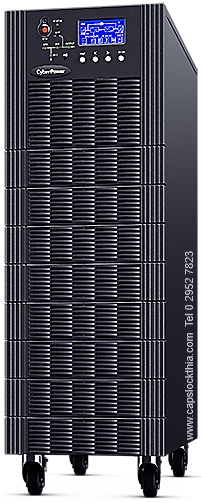

HSTP3T20KE (3-Phase)
DESCRIPTION : 20KVA/18KW 400/230VAC 3PHASE w/o BAT
VA 20000 Watts 18000
Rated Input Current ( A ) 28
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
HSTP3T20KE (3-Phase)DESCRIPTION : 20KVA/18KW 400/230VAC 3PHASE w/o BAT
VA 20000 Watts 18000
Rated Input Current ( A ) 28
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Features
Three-phase Design
ECO Mode
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
Emergency Power Off (EPO) Port
PowerPanel Management Software
Online (Double Conversion) UPS Topology
UPS Parallel Expansion
Generator Compatible
Overload Protection
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
HSTP3T20KEUser's Manual
CYBERPOWER UPS
HSTP3T30KE (3-Phase)
DESCRIPTION : 30KVA/27KW 400/230VAC 3PHASE w/o BAT
VA 30000 Watts 27000
Rated Input Current ( A ) 42
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
HSTP3T30KE (3-Phase)DESCRIPTION : 30KVA/27KW 400/230VAC 3PHASE w/o BAT
VA 30000 Watts 27000
Rated Input Current ( A ) 42
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Features
Three-phase Design
ECO Mode
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
Emergency Power Off (EPO) Port
PowerPanel Management Software
Online (Double Conversion) UPS Topology
UPS Parallel Expansion
Generator Compatible
Overload Protection
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
HSTP3T30KEUser's Manual
CYBERPOWER UPS
HSTP3T30KE (3-Phase)
DESCRIPTION : 40KVA/36KW 400/230VAC 3PHASE w/o BAT
VA 40000 Watts 36000
Rated Input Current ( A ) 55
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
HSTP3T30KE (3-Phase)DESCRIPTION : 40KVA/36KW 400/230VAC 3PHASE w/o BAT
VA 40000 Watts 36000
Rated Input Current ( A ) 55
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Features
Three-phase Design
ECO Mode
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
Emergency Power Off (EPO) Port
PowerPanel Management Software
Online (Double Conversion) UPS Topology
UPS Parallel Expansion
Generator Compatible
Overload Protection
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
HSTP3T40KEUser's Manual

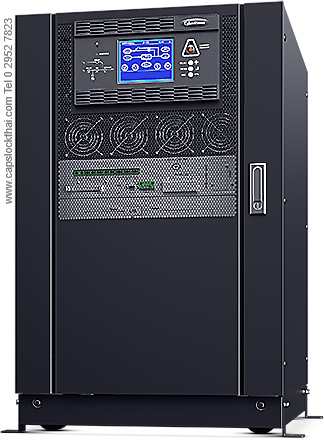

CYBERPOWER UPS
HSTP3T60KE (3-Phase)
DESCRIPTION : 60KVA/54KW 400/230VAC 3PHASE w/o BAT
VA 60000 Watts 54000
Rated Input Current ( A ) 83
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
HSTP3T60KE (3-Phase)DESCRIPTION : 60KVA/54KW 400/230VAC 3PHASE w/o BAT
VA 60000 Watts 54000
Rated Input Current ( A ) 83
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Features
Three-phase Design
Hot-swappable Power Modules
LCD Touch Panel
UPS Parallel Expansion
Generator Compatible
Overload Protection
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
Online (Double Conversion) UPS Topology
ECO Mode
Color LCD Panel
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
Emergency Power Off (EPO) Port
PowerPanel Management Software
What's in the box
HSTP3T60KEUser's Manual
CYBERPOWER UPS
HSTP3T80KE (3-Phase)
DESCRIPTION : 80KVA/72KW 400/230VAC 3PHASE w/o BAT
VA 80000 Watts 72000
Rated Input Current ( A ) 110
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
HSTP3T80KE (3-Phase)DESCRIPTION : 80KVA/72KW 400/230VAC 3PHASE w/o BAT
VA 80000 Watts 72000
Rated Input Current ( A ) 110
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Features
Three-phase Design
Hot-swappable Power Modules
LCD Touch Panel
UPS Parallel Expansion
Generator Compatible
Overload Protection
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
Online (Double Conversion) UPS Topology
ECO Mode
Color LCD Panel
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
Emergency Power Off (EPO) Port
PowerPanel Management Software
What's in the box
HSTP3T80KEUser's Manual
CYBERPOWER UPS

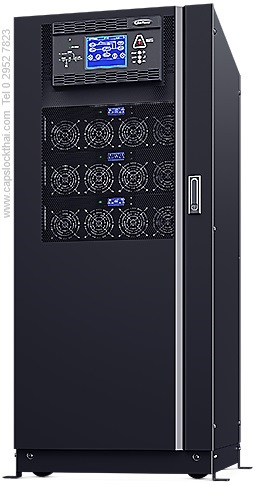

HSTP3T100KE (3-Phase)
DESCRIPTION : 100KVA/90KW 400/230VAC 3PHASE w/o BAT
VA 100000 Watts 90000
Rated Input Current ( A ) 138
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
HSTP3T100KE (3-Phase)DESCRIPTION : 100KVA/90KW 400/230VAC 3PHASE w/o BAT
VA 100000 Watts 90000
Rated Input Current ( A ) 138
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Features
Three-phase Design
Hot-swappable Power Modules
LCD Touch Panel
UPS Parallel Expansion
Generator Compatible
Overload Protection
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
Online (Double Conversion) UPS Topology
ECO Mode
Color LCD Panel
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
Emergency Power Off (EPO) Port
PowerPanel Management Software
What's in the box
HSTP3T100KEUser's Manual
CYBERPOWER UPS
HSTP3T10KEBC (3-Phase)
DESCRIPTION : 10KVA/9KW
with 9AH x 40pcs BAT
VA 10000 Watts 9000
Rated Input Current ( A ) 14
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
HSTP3T10KEBC (3-Phase)DESCRIPTION : 10KVA/9KW
with 9AH x 40pcs BAT
VA 10000 Watts 9000
Rated Input Current ( A ) 14
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Features
Three-phase Design
ECO Mode
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
Emergency Power Off (EPO) Port
PowerPanel Management Software
Online (Double Conversion) UPS Topology
UPS Parallel Expansion
Generator Compatible
Overload Protection
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
HSTP3T10KEBCUser's Manual
CYBERPOWER UPS
Bat space& cable w/o BAT ( ไม่มีแบตเตอรี่ )
MODEL :
HSTP3T10KEBCWOB (3-Phase)DESCRIPTION :
10KVA/9KWBat space& cable w/o BAT ( ไม่มีแบตเตอรี่ )
CYBERPOWER UPS

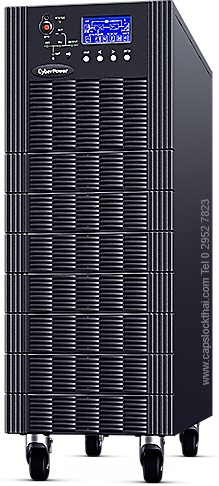

HSTP3T1K5EBC (3-Phase)
DESCRIPTION : 15KVA/13.5KW
with 9AH x 40pcs BAT
VA 15000 Watts 13500
Rated Input Current ( A ) 21
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
HSTP3T1K5EBC (3-Phase)DESCRIPTION : 15KVA/13.5KW
with 9AH x 40pcs BAT
VA 15000 Watts 13500
Rated Input Current ( A ) 21
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Features
Three-phase Design
ECO Mode
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
Emergency Power Off (EPO) Port
PowerPanel Management Software
Online (Double Conversion) UPS Topology
UPS Parallel Expansion
Generator Compatible
Overload Protection
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
HSTP3T15KEBCUser's Manual
CYBERPOWER UPS
Bat space& cable w/o BAT ( ไม่มีแบตเตอรี่ )
MODEL :
HSTP3T15KEBCWOB (3-Phase)DESCRIPTION :
15KVA/13.5KWBat space& cable w/o BAT ( ไม่มีแบตเตอรี่ )
CYBERPOWER UPS

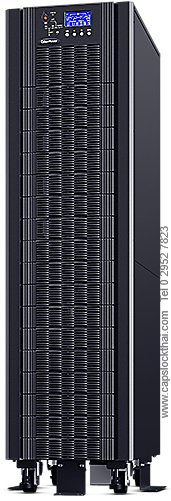

HSTP3T20KEBC (3-Phase)
DESCRIPTION : 20KVA/18KW
with 12AH x 40pcs BAT
VA 20000 Watts 18000
Rated Input Current ( A ) 28
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
HSTP3T20KEBC (3-Phase)DESCRIPTION : 20KVA/18KW
with 12AH x 40pcs BAT
VA 20000 Watts 18000
Rated Input Current ( A ) 28
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Features
Three-phase Design
ECO Mode
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
Emergency Power Off (EPO) Port
PowerPanel Management Software
Online (Double Conversion) UPS Topology
UPS Parallel Expansion
Generator Compatible
Overload Protection
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
HSTP3T20KEBCUser's Manual
CYBERPOWER UPS
Bat space& cable w/o BAT ( ไม่มีแบตเตอรี่ )
MODEL :
HSTP3T20KEBCWOB (3-Phase)DESCRIPTION :
20KVA/18KWBat space& cable w/o BAT ( ไม่มีแบตเตอรี่ )
CYBERPOWER UPS

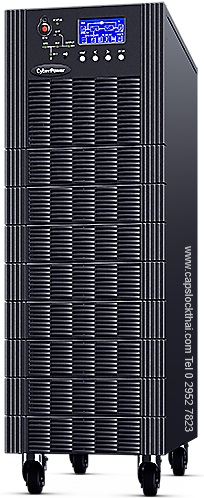

HSTP3T30KEBC (3-Phase)
DESCRIPTION : 30KVA/27KW
with 12AH x 40pcs BAT
VA 30000 Watts 27000
Rated Input Current ( A ) 42
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
HSTP3T30KEBC (3-Phase)DESCRIPTION : 30KVA/27KW
with 12AH x 40pcs BAT
VA 30000 Watts 27000
Rated Input Current ( A ) 42
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Features
Three-phase Design
ECO Mode
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
Emergency Power Off (EPO) Port
PowerPanel Management Software
Online (Double Conversion) UPS Topology
UPS Parallel Expansion
Generator Compatible
Overload Protection
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
HSTP3T30KEBCUser's Manual
CYBERPOWER UPS
Bat space& cable w/o BAT ( ไม่มีแบตเตอรี่ )
MODEL :
HSTP3T30KEBCWOB (3-Phase)DESCRIPTION :
30KVA/27KWBat space& cable w/o BAT ( ไม่มีแบตเตอรี่ )
CYBERPOWER UPS

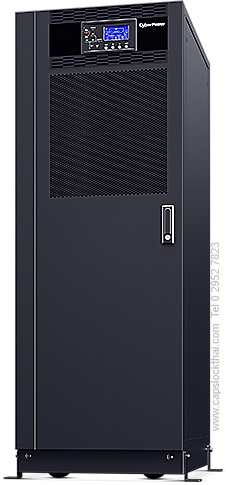

HSTP3T40KEBC (3-Phase)
DESCRIPTION : 40KVA/36KW
with 12AH x 80pcs BAT
VA 40000 Watts 36000
Rated Input Current ( A ) 55
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
MODEL :
HSTP3T40KEBC (3-Phase)DESCRIPTION : 40KVA/36KW
with 12AH x 80pcs BAT
VA 40000 Watts 36000
Rated Input Current ( A ) 55
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Features
Three-phase Design
ECO Mode
Dual Inputs
Pure Sine Wave Output
Maintenance Bypass Switch
Emergency Power Off (EPO) Port
PowerPanel Management Software
Online (Double Conversion) UPS Topology
UPS Parallel Expansion
Generator Compatible
Overload Protection
LCD Status Display
SNMP/HTTP Remote Management Capability (Optional)
What's in the box
HSTP3T40KEBCUser's Manual
CYBERPOWER UPS
Bat space& cable w/o BAT ( ไม่มีแบตเตอรี่ )
MODEL :
HSTP3T40KEBCWOB (3-Phase)DESCRIPTION :
40KVA/36KWBat space& cable w/o BAT ( ไม่มีแบตเตอรี่ )
แผนที่
แผนที่
ติดต่อเรา
บริษัท แค็พซล็อค จำกัด
50 ซอยงามวงศ์วาน 23 ถนนงามวงศ์วาน
ตำบลบางเขน อำเภอบางเขน จังหวัดนนทบุรี 11000
โทร 0 2952 7823 (auto) แฟ็กซ์ 0 2952 7423
Email : info@capslockthai.com
Line ID : @thailandups
เลขประจำตัวผู้เสียภาษี 0125546012411
เวลาทำการ จันทร์ - ศุกร์ 8.30 - 17.30 น.
บริษัท แค็พซล็อค จำกัด
50 ซอยงามวงศ์วาน 23 ถนนงามวงศ์วาน
ตำบลบางเขน อำเภอบางเขน จังหวัดนนทบุรี 11000
โทร 0 2952 7823 (auto) แฟ็กซ์ 0 2952 7423
Email : info@capslockthai.com
Line ID : @thailandups
เลขประจำตัวผู้เสียภาษี 0125546012411
เวลาทำการ จันทร์ - ศุกร์ 8.30 - 17.30 น.
Contact us
Capslock Company Limited
50 Soi Ngamwongwan 23 Ngamwongwan Rd
Bangkhen Subdistrict Muang District Nonthaburi 11000
Tel 0 2952 7823 (auto) Fax 0 2952 7423
Email : info@capslockthai.com
Line ID : @thailandups
TAX ID 0125546012411
Office hours : Monday - Friday 8.30 am - 5.30 pm
Capslock Company Limited
50 Soi Ngamwongwan 23 Ngamwongwan Rd
Bangkhen Subdistrict Muang District Nonthaburi 11000
Tel 0 2952 7823 (auto) Fax 0 2952 7423
Email : info@capslockthai.com
Line ID : @thailandups
TAX ID 0125546012411
Office hours : Monday - Friday 8.30 am - 5.30 pm
ธนาคารสำหรับโอนเงินค่าสินค้า/ Bank ( payment transfer)
ชื่อบัญชี / account name บจ แค็พซล็อค / Capslock Co.,Ltd
ธนาคารกรุงศรีอยุธยา สาขาถนนติวานนท์(คลองบางตลาด) - ออมทรัพย์
Krungsri Bank, Tiwanon(klong ban tarat) Branch, Saving account
เลขที่บัญชี /Account number 241 1 26526 3
ธนาคารกสิกรไทย สาขาโรบินสัน ศรีสมาน - ออมทรัพย์
Kasikorn Bank, Ronbinson Srisaman Branch, Saving account
เลขที่บัญชี /Account number 039 2 79050 0
ธนาคารกรุงเทพ สาขาเดอะมอลล์ งามวงศ์วาน - ออมทรัพย์
Bangkok Bank, The mall Ngamwongwan Branch, Saving account
เลขที่บัญชี /Account number 088 0 89859 8
ชื่อบัญชี / account name บจ แค็พซล็อค / Capslock Co.,Ltd
ธนาคารกรุงศรีอยุธยา สาขาถนนติวานนท์(คลองบางตลาด) - ออมทรัพย์
Krungsri Bank, Tiwanon(klong ban tarat) Branch, Saving account
เลขที่บัญชี /Account number 241 1 26526 3
ธนาคารกสิกรไทย สาขาโรบินสัน ศรีสมาน - ออมทรัพย์
Kasikorn Bank, Ronbinson Srisaman Branch, Saving account
เลขที่บัญชี /Account number 039 2 79050 0
ธนาคารกรุงเทพ สาขาเดอะมอลล์ งามวงศ์วาน - ออมทรัพย์
Bangkok Bank, The mall Ngamwongwan Branch, Saving account
เลขที่บัญชี /Account number 088 0 89859 8
ใบทะเบียนภาษีมูลค่าเพิ่ม (ภ.พ.20)
แผนที่
All rights reserved to Capslock Company Limited- 2022
หมายเหตุ
- ภาพใช้แสดงเป็นตัวอย่างเท่านั้น
- ราคาดังกล่าวยังไม่รวมภาษีมูลค่าเพิ่ม
- ราคาอาจมีการเปลี่ยนแปลงโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
- ทางร้านขอสงวนสิทธิ์ในความรับผิดชอบใดๆ อันเนื่องจาก
ข้อผิดพลาดในการพิมพ์ (ผิด/ตก) ไม่ว่ากรณีใดๆ ก็ตาม
- ภาพใช้แสดงเป็นตัวอย่างเท่านั้น
- ราคาดังกล่าวยังไม่รวมภาษีมูลค่าเพิ่ม
- ราคาอาจมีการเปลี่ยนแปลงโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
- ทางร้านขอสงวนสิทธิ์ในความรับผิดชอบใดๆ อันเนื่องจาก
ข้อผิดพลาดในการพิมพ์ (ผิด/ตก) ไม่ว่ากรณีใดๆ ก็ตาม
Cyberpower RT33010KE(3-Phase)
VA 10000 Watts 10000
Rated Input Current ( A ) 20
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
VA 10000 Watts 10000
Rated Input Current ( A ) 20
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1

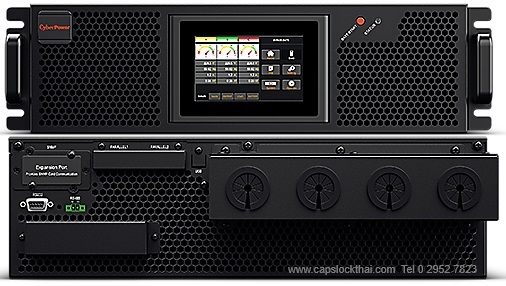

Cyberpower RT33015KE(3-Phase)
VA 15000 Watts 15000
Rated Input Current ( A ) 30
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
VA 15000 Watts 15000
Rated Input Current ( A ) 30
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Cyberpower RT33020KE(3-Phase)
VA 20000 Watts 20000
Rated Input Current ( A ) 31
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
VA 20000 Watts 20000
Rated Input Current ( A ) 31
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
Cyberpower RT33025KE(3-Phase)
VA 25000 Watts 25000
Rated Input Current ( A ) 38
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
VA 25000 Watts 25000
Rated Input Current ( A ) 38
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1

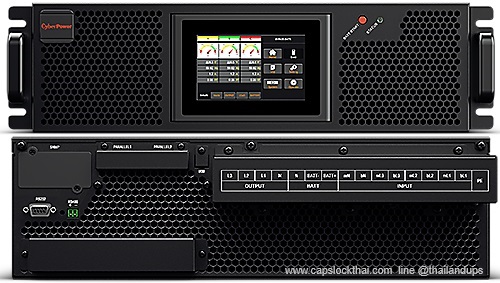

Cyberpower RT33030KE(3-Phase)
VA 30000 Watts 24000
Rated Input Current ( A ) 37
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
VA 30000 Watts 24000
Rated Input Current ( A ) 37
Rated Output Voltage ( Vac )
Line to Neutral (L-N):220, 230, 240 Vac,
Line to Line (L-L):380, 400, 415 Vac
Outlets Hardwire Terminal Block x 1
UPS Accessories

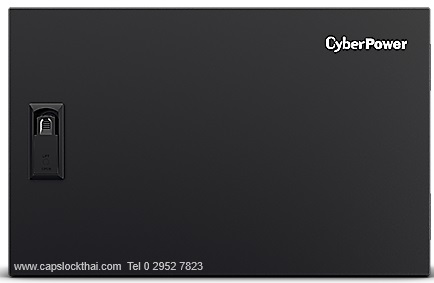

Rack Mount maintenance bypass switch box
Door Design to Improve Safety
Metal Housing
MBS63AHVHWW
Rack Mount maintenance bypass switch box
Door Design to Improve Safety
Metal Housing
ติดต่อสอบถามเพิ่มเติม
ติดต่อสอบถามเพิ่มเติม
ติดต่อสอบถามเพิ่มเติม
*** หมายเหตุ เงื่อนไขการติดตั้งเครื่องสำรองไฟ ***
ราคาที่จะเสนอ
รวมค่าติดตั้งเครื่องรวมแบต, commissioning,
และ ค่าสายไฟฟ้า input,output รวมกันยาวไม่เกินไม่เกิน 6 เมตร
รวมค่า PM 2 ปี ปีละ 2 ครั้ง (รวมทั้งหมด 4 ครั้ง)
รวมค่า อะไหล่และแบตในช่วงรับประกัน 2 ปี
after sales service : 24 x 7 : call center
ราคาที่เสนอไม่รวม :
ไม่รวมค่าขนส่ง ถึงตำแหน่งที่ตั้งตัวเครื่อง
ไม่รวม ระบบเดินสายไฟฟ้าหน้างาน
ไม่รวม circuit breaker - input , output
ราคาที่จะเสนอ
รวมค่าติดตั้งเครื่องรวมแบต, commissioning,
และ ค่าสายไฟฟ้า input,output รวมกันยาวไม่เกินไม่เกิน 6 เมตร
รวมค่า PM 2 ปี ปีละ 2 ครั้ง (รวมทั้งหมด 4 ครั้ง)
รวมค่า อะไหล่และแบตในช่วงรับประกัน 2 ปี
after sales service : 24 x 7 : call center
ราคาที่เสนอไม่รวม :
ไม่รวมค่าขนส่ง ถึงตำแหน่งที่ตั้งตัวเครื่อง
ไม่รวม ระบบเดินสายไฟฟ้าหน้างาน
ไม่รวม circuit breaker - input , output
